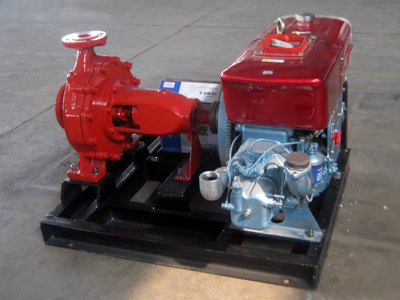

XBC-IS series diesel engine clean water fire pump
XBC-IS series diesel engines are equipped with clean water fire pumps, which are suitable for industrial, agricultural and urban, drainage, fire water supply, etc. For pumping clean water and liquids with physical and chemical properties similar to water without solid particles.
product description:
XBC-IS series diesel engines are equipped with clean water fire pumps. It is one of the energy-saving pump products promoted in my country. The pump has simple structure, reliable performance, small size, light weight, good anti-cavitation performance, low power consumption, and convenient use and maintenance.
  IS and IR pumps have wide versatility. There are 140 specifications in the whole series, but only four shafts are used; the shafts, bearings and shaft seals of the same specification can be interchanged; there are only four suspensions for the full series of pumps. The pump speed is divided into two types: 2900 and 1450 rpm.

The performance is as follows:
2900 revolutions per minute 1450 revolutions per minute
Flow rate: 240m3/min 400m3/min
Total head: 125 meters 55 meters
Rotation speed: 3500 rpm (when used in 60 modulated power supply, the impeller diameter is reduced)
Working temperature: 80℃
The allowable suction pipeline pressure is 0.3 MPa, and the working pressure of the pump is 1.6 MPa.


Scope of application:
IS and IR pumps are horizontal single-stage single-suction clean water centrifugal pumps, which are widely used in industry, agriculture, urban, drainage, and fire-fighting water supply. For pumping clean water and liquids with physical and chemical properties similar to water without solid particles.



             Performance parameter table:
型号
流量Q
扬程H
(米)
转速n
r/min
电机功率
(千瓦)
米3/h
升/秒
I S 50-32-125
H
12.5
3.47
20
2900
2.2
6.3
1.74
5
1450
0.55
I S 50-32-160
H
12.5
3.47
32
2900
3
6.3
1.74
8
1450
0.55
I S 50-32-200
H
12.5
3.47
50
2900
5.5
6.3
1.74
12.5
1450
0.75
I S 50-32-250
H
12.5
3.47
80
2900
11
6.3
1.74
20
1450
1.5
I S 65-50-125
H
25
6.94
20
2900
3
12.5
3.74
5
1450
0.55
I S 65-50-160
H
25
6.94
32
2900
5.5
12.5
3.47
8
1450
0.75
I S 65-40-200
H
25
6.94
50
2900
7.5
12.5
3.74
12.5
1450
1.1
I S 65-40-250
H
25
6.94
80
2900
15
12.5
3.74
20
1450
2.2
I S 65-40-315
H
25
6.94
125
2900
30
12.5
3.74
32
1450
4
I S 80-65-125
H
50
13.9
20
2900
5.5
25
6.94
5
1450
0.75
I S 80-65-160
H
50
13.9
32
2900
7.5
25
6.94
8
1450
1.5
I S 80-50-200
H
50
13.9
50
2900
15
25
6.94
12.5
1450
2.2
I S 80-50-250
H
50
13.9
80
2900
22
25
6.94
20
1450
3
I S 80-50-315
H
50
13.9
125
2900
37
25
6.94
32
1450
5.5
型号
流量Q
扬程H
(米)
转速n
r/min
电机功率
(千瓦)
米3/h
升/秒
I S 100-80-125
H
100
27.8
20
2900
11
50
13.9
5
1450
1.5
I S 100-80-160
H
100
27.8
32
2900
15
50
13.9
8.0
1450
2.2
I S 100-65-200
H
100
27.8
50
2900
22
50
13.9
12.5
1450
4
I S 100-65-250
H
100
27.8
80
2900
37
50
13.9
20
1450
5.5
I S 100-65-315
H
100
27.8
125
2900
75
50
13.9
32
1450
11
I S 125-100-200
H
200
55.5
50
2900
45
100
27.8
12.5
1450
7.5
I S 125-100-250
H
200
55.6
80
2900
75
100
27.8
20
1450
11
I S 125-100-315
H
200
55.6
125
2900
90
100
27.8
32
1450
15
I S 125-100-400
H
100
27.8
50
1450
30
I S 150-125-250
H
200
55.6
20
1450
18.5
I S 150-125-315
H
200
55.6
32
1450
30
I S 150-125-400
H
200
55.6
50
1450
40
I S 200-150-250
H
400
111.1
20
1450
37
I S 200-150-315
H
400
111.1
32
1450
55
I S 200-150-400
H
400
111.1
50
1450
90
