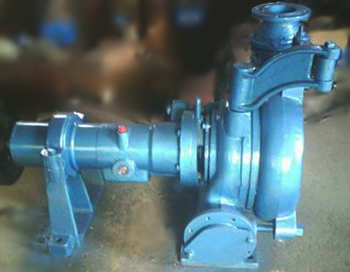

PS sand pump

The PS sand pump is a horizontal, side-inlet centrifugal pump. It is used to transport liquids of ore pulp and sand and dirty liquids (the concentration of solid matter can reach 65% by weight, but this factor should be taken into consideration for the size of the replacement power).

Structural features:

Performance parameter table:

泵型号	流量 Q		扬程	转速	效率	功率N（Kw）		叶轮
	流量 Q		H	N	η	功率N（Kw）		直径
	（m³/h）	(L/S)	(m)	（r/min）	%	轴功率	电机功率	(mm)
2^1/2^PS	30	8.33	35	1800	27	10.6	22	310
	50	13.89	34.5		42	11.2
	60	16.67	34		47	11.8
	70	19.44	33		50	12.5
2^1/2^PS(D)	30	8.33	23.5	1460	30	6.4	15	310
	50	13.89	23		44.5	7
	60	16.67	22		48	7.5
	70	19.44	21		50	8
4PS	90	25	37	1470	40	22.5	45	610
	120	33.33	36.5		50	24.5
	140	38.89	36		54	25.6
	160	44.44	35.5		57	27.3
4PS(D)	90	25	25	1200	44	14	30	610
	120	33.33	24		52	15
	140	38.89	23		53	16.5
	160	44.44	21		54	17
5PS	180	50	36	1080	50	35.5	75	980
	240	66.67	35		55	41.8
	280	77.78	33		60	42
	320	88.86	31		62	44
5PS(D)	180	50	29	980	50	28.4	55	980
	240	66.67	28		55	33.4
	280	77.78	26.5		60	33.8
	320	88.86	25		62	35
6PS	320	88.89	36.5	1100	39	80	160	1460
	380	105.56	36		44	84
	440	122.22	34.5		46	87
	500	138.89	32.5		47	93.5
6PS(D)	320	88.89	29	980	50	50.5	90	1460
	380	105.56	28.5		56	53
	440	122.22	27		59	55
	500	138.89	26		60	59
