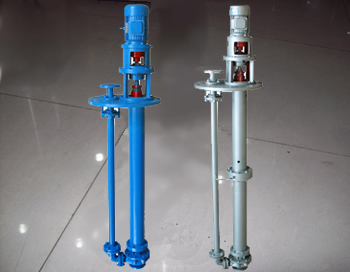

FY type cantilever submerged stainless steel centrifugal pump

FY type cantilever submerged stainless steel centrifugal pump, used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, sewage treatment and other industries

product description:

The universally used mechanical seal and the unique structure of the impeller make the pump high efficiency, energy saving, no leakage, and long life. It is widely used in petroleum, chemical, pharmaceutical, papermaking, metallurgy, sewage treatment and other industries.

Features:

1. The pump is a vertical submerged pump with a beautiful appearance. It is directly installed on the storage of the medium to be transported without additional floor space, thus reducing capital investment.

2. The mechanical seal is eliminated, and the trouble of frequent maintenance of other submerged pumps due to the easy wear of the mechanical seal is solved, the operating cost of the pump is saved, and the work efficiency is improved.

3. A unique centrifugal double-balanced impeller is used to transport clean media that does not contain solid particles, with extremely low vibration and noise and high efficiency; an open double-balanced impeller is used to transport unclean liquids with solid particles and short fibers. It runs smoothly and does not block.

Performance parameter table:

型号	进出口径（MM）	流量方每时\|升每秒		扬程（M）	转速	轴功率\|电机功率		液下深度
25FY-16	25	3.6	1	16	2900	0.713	1.5	500 至 5000
25FY-16A	25	3.27	0.91	13	2900	0.713	1.5
25FY-25	25	3.6	1	25	2900	1.16	2.2
25FY-25A	25	3.27	0.91	20	2900	1.16	2.2
25FY-41	25	3.6	1	41	2900	2.51	4
25FY-41A	25	3.27	0.91	33	2900	2.51	3
40FY-16	32	7.2	2	16	2900	0.78	2.2
40FY-16A	32	6.55	1.82	13	2900	0.78	1.5
40FY-26	32	7.2	2	26	2900	1.45	3
40FY-26A	32	6.55	1.82	21	2900	1.45	3
40FY-40	32	7.2	2	40	2900	2.53	5.5
40FY-40A	32	6.55	1.82	32	2900	2.53	5.5
50FY-16	40	14.4	4	16	2900	1.18	3
50FY-16A	40	13.1	3.64	13	2900	1.18	3
50FY-25	40	14.4	4	25	2900	1.96	4
50FY-25A	40	13.1	3.64	20	2900	1.96	3
50FY-40	40	14.4	4	40	2900	3.73	7.5
50FY-40A	40	13.1	3.61	33	2900	3.73	5.5
65FY-16	50	28.8	8	16	2900	2.16	4
65FY-16A	50	26.2	7.28	13	2900	2.16	3
65FY-25	50	28.8	8	25	2900	3.56	5.5
65FY-25A	50	26.2	7.28	21	2900	3.56	5.5
65FY-40	50	28.8	8	40	2900	6.04	11
65FY-40A	50	26.2	7.28	33	2900	6.04	11
80FY-15	65	54	15	15	2900	3.34	7.5
80FY-15A	65	49.1	13.65	12	2900	3.34	7.5
80FY-24	65	54	15	24	2900	5.43	11
80FY-24A	65	49.1	13.65	20	2900	5.43	11
80FY-38	65	54	15	38	2900	9.64	18.5
80FY-38A	65	49.1	13.65	31	2900	9.64	15
100FY-23	80	100.8	28	23	2900	9.25	18.5
100FY-23A	8	91.8	25.5	18	2900	9.25	15
100FY-37	80	100.8	28	37	2900	14.73	22
100FY-37A	80	91.8	25.5	31	2900	14.73	22
