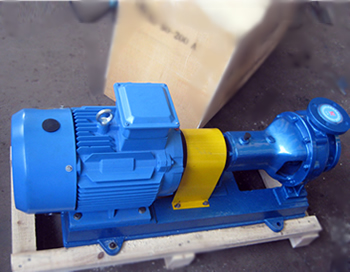

IHF type fluoroplastic lined chemical centrifugal pump

IHF chemical centrifugal pump is used to transport any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent, reducing agent and other harsh conditions of highly corrosive media.

details:

The IHF pump is a single-stage single-suction fluoroplastic alloy chemical centrifugal pump. The pump has corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, no toxin decomposition, wide use temperature, and the conveying medium temperature is -85℃ -200℃ and other advantages.

Features:

The pump body of the IHF series fluoroplastic lined centrifugal pump is made of a metal shell lined with polyperfluoroethylene propylene (F46); the pump cover, impeller and shaft sleeve are all made of metal inserts and fluoroplastics are integrally sintered and molded, and the shaft seal adopts an external bellow Mechanical seal; static ring uses 99.9% (alumina ceramic or silicon nitride); moving ring uses tetrafluoroethylene filling material. It is characterized by reliable corrosion-resistant and wear-resistant sealing performance.

Product Usage:

This pump is suitable for transporting any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong bases, strong oxidants, organic solvents, reducing agents and other harsh corrosive media. It is currently the world's most innovative One of corrosion-resistant equipment. Its biggest advantages are reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise and long service life.

Performance parameter table:

型号	转速2900r/min					转速1450r/min
型号	流量Q (m³/h)	扬程H (m)	汽蚀余量 (m)	泵效率 (%)	功率 (KW)	流量Q (m³/h)	扬程H (m)	汽蚀余量 (m)	泵效率 (%)	功率 (KW)
IHF50-32-125	12.5	20	2	50	1.38	6.3	5	2	45	0.19
IHF50-32-125A	11.4	16.5	2	50	1.02	5.7	4.2	2	44	0.15
IHF50-32-160	12.5	32	2	46	2.37	6.3	8	2	40	0.34
IHF50-32-160A	11.4	26.6	2	45	1.8	5.7	6.7	2	39	0.27
IHF50-32-200	12.5	50	2	39	4.36	6.3	12.5	2	33	0.65
IHF50-32-200A	11.7	43.7	2	38	3.7	5.9	10.9	2	32	0.55
IHF50-32-200B	11	38.7	2	37	3.1	5.5	9.7	2	31	0.47
IHF65-50-125	25	20	2	62	2.2	12.5	5	2	55	0.31
IHF65-50-125A	22.8	16.6	2	61	1.69	11.4	4.2	2	54	0.24
IHF65-50-160	25	32	2	57	3.82	12.5	8	2	51	0.53
IHF65-50-160A	22.8	26.6	2	56	2.95	11.4	6.7	2	50	0.42
IHF65-40-200	25	50	2	52	6.55	12.5	12.5	2	46	0.93
IHF65-40-200A	23.4	43.7	2	51	5.46	11.7	10.9	2	45	0.77
IHF65-40-200B	22	38.7	2	50	4.64	11	9.7	2	44	0.66
IHF85-65-125	50	20	3	68	3.95	25	5	2.5	64	0.53
IHF85-65-125A	45.6	16.6	3	68	3	22.8	4.2	2.5	63	0.41
IHF85-65-160	50	32	2.3	67	6.5	25	8	2	62	0.88
IHF85-65-160A	45.6	26.6	2.3	66	5	22.8	6.7	2	61	0.68
IHF85-65-200	50	50	2.5	63	10.8	25	12.5	2	57	1.49
IHF85-65-200A	46.8	43.7	2.5	62	9	23.4	10.9	2	56	1.24
IHF85-65-200B	44	38.7	2.5	61	7.6	22	9.7	2	55	1.06
IHF100-80-125	100	20	3.2	73	7.46	50	5	2	69	1
IHF100-80-125A	91.2	16.6	3.2	72	5.7	45.6	4.2	2	68	0.8
IHF100-80-160	100	32	3.2	73	11.9	50	8	3.4	69	1.58
IHF100-80-160A	91.2	26.6	3.2	72	9.2	45.6	6.7	3.4	68	1.22
IHF100-65-200	100	50	3.2	72	18.9	50	12.5	2.5	68	2.5
IHF100-65-200A	93.6	43.7	3.2	71	15.7	46.8	10.9	2.5	67	2.1
IHF100-65-200B	88	38.7	3.2	70	13.2	44	9.7	2.5	66	1.76
IHF100-65-250	100	80	4.0	45	31.6	50	20	4.5	5.5	4.3
IHF125-65-250A	93.5	70	4.5	37	26.2
