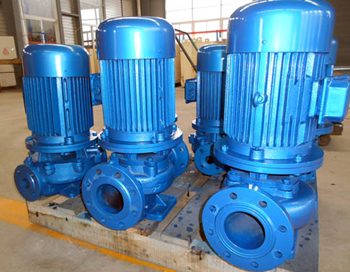

ISG, IHG single-stage pipeline centrifugal pump

ISG single-stage pipeline centrifugal pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC Refrigeration cycle, bathroom and other heating and cooling water cycle pressurization and equipment supporting

product description

　　 ISG single-stage pipeline centrifugal pump is designed based on the ingenious combination of general vertical pumps. At the same time, it is suitable for hot water, high temperature and corrosion resistant chemical pumps and oil pumps based on the ALG type according to the use temperature and medium. This series of products have high efficiency, energy saving, low noise and reliable performance.

2. Main purpose

1. 　ISG single-stage pipeline centrifugal pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment matching, use temperature T <80 ℃.

3. Features

1. 　The hot water pump is a vertical structure with the same inlet and outlet diameters and located on the same centerline. It can be installed in the pipeline like a valve. It has a compact and beautiful appearance, small footprint, and low construction investment, such as with a protective cover. It can be used outdoors.

2. 　The impeller is directly installed on the long shaft of the motor. The axial size is short, the structure is compact, and the bearing configuration of the pump and the motor is reasonable, which can effectively balance the radial and axial loads generated by the operation of the pump, thereby ensuring the smooth operation of the pump. Low vibration and low noise.

　　 3.　The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and adopts hard alloy material, wear-resistant seal, which can effectively extend the service life of mechanical seal.

　　 4.　The hot water pipeline pump is easy to install and maintain, no need to dismantle the pipeline system. All the rotor parts can be drawn out by removing the nut of the pump joint seat.

　　 5. 　 According to the use requirements, that is, the flow and head needs, the series and parallel operation of pumps can be used.

　　 6.　 The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline layout.

Four, working conditions

　　 1.　 suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, that is, suction port pressure + pump head ≤1.6MPa, pump static pressure test pressure is ≤2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be mentioned separately when ordering, so that the flow-through part and the connection part of the pump are made of cast steel during manufacturing.

　　 2.　Environment temperature<40℃, relative humidity<40%.

　　 4.　 The volume content of solid particles in the conveyed medium does not exceed 0.1 per unit volume, and the particle size is less than 0.2mm.

Note: If the medium used is with fine particles, please specify when ordering so that our factory can use wear-resistant mechanical seals.

5. Performance parameter table:

泵型号	流量		扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
泵型号	(m 3 /h)	(l/s)	扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
65-100	25	6.94	12.5	69	2900	1.5	2.5
65-100A	22.3	6.19	10	67	2900	1.1	2.5
65-125	25	6.94	20	68	2900	3.0	2.5
65-125A	22.3	6.19	16	66	2900	2.2	2.5
65-160	25	6.94	32	63	2900	4.0	2.5
65-160A	23.4	6.5	28	62	2900	4.0	2.5
65-160B	21.6	6.0	24	58	2900	3.0	2.5
65-200	25	6.94	50	58	2900	7.5	2.5
65-200A	23.5	6.53	44	57	2900	7.5	2.5
65-200B	21.8	6.06	38	55	2900	5.5	2.5
65-250	25	6.94	80	50	2900	15	2.5
65-250A	23.4	6.5	70	50	2900	11	2.5
65-250B	21.6	6.0	60	49	2900	11	2.5
65-315	25	6.94	125	40	2900	30	2.5
65-315A	23.7	6.58	113	40	2900	22	2.5
65-315B	22.5	6.25	101	39	2900	18.5	2.5
65-315C	20.6	5.72	85	38	2900	15	2.5
65-100(I)	50	13.9	12.5	73	2900	3.0	3.0
65-100(I)A	44.7	12.4	10	72	2900	2.2	3.0
65-125(I)	50	13.9	20	72.5	2900	5.5	3.0
65-125(I)A	45	12.5	16	71	2900	4.0	3.0
65-160(I)	50	13.9	32	71	2900	7.5	3.0
65-160(I)A	46.7	13.0	28	70	2900	7.5	3.0
65-160(I)B	43.3	12.0	24	69	2900	5.5	3.0
65-200(I)	50	13.9	50	67	2900	15	3.0
65-200(I)A	47	13.1	44	66	2900	11	3.0
65-200(I)B	43.5	12.1	38	65	2900	7.5	3.0
65-250(I)	50	13.9	80	59	2900	22	3.0
65-250(I)A	46.7	13.0	70	59	2900	18.5	3.0
65-250(I)B	43.3	12.0	60	58	2900	15	3.0
65-315(I)	50	13.9	125	54	2900	37	3.0
65-315(I)A	46.5	12.9	110	54	2900	30	3.0
65-315(I)B	44.5	12.4	100	53	2900	30	3.0
65-315(I)C	41	11.4	85	51	2900	22	3.0
80-100	50	13.9	12.5	73	2900	3.0	3.0
80-100A	44.7	12.5	10	72	2900	2.2	3.0
80-125	50	13.9	20	72.5	2900	5.5	3.0
80-125A	45	12.5	16	71	2900	4.0	3.0
80-160	50	13.9	32	71	2900	7.5	3.0
80-160A	46.7	13.0	28	70	2900	7.5	3.0
80-160B	43.3	12.0	24	69	2900	5.5	3.0
80-200	50	13.9	50	67	2900	15	3.0
80-200A	47	13.1	44	66	2900	11	3.0
80-200B	43.5	12.1	38	65	2900	7.5	3.0
80-250	50	13.9	80	59	2900	22	3.0
80-250A	46.7	13.0	70	59	2900	18.5	3.0
80-250B	43.3	12.0	60	58	2900	15	3.0
80-315	50	13.9	125	54	2900	37	3.0
80-315A	46.5	12.9	110	54	2900	30	3.0
80-315B	44.5	12.4	100	53	2900	30	3.0
80-315C	41	11.4	85	51	2900	22	3.0
80-100(I)	100	27.8	12.5	76	2900	5.5	4.5
80-100(I)A	89	24.7	10	74	2900	4.0	4.5
80-125(I)	100	27.8	20	76	2900	11	4.5
80-125(I)A	89	24.7	16	74	2900	7.5	4.5
80-160(I)	100	27.8	32	76	2900	15	4.5
80-160(I)A	93.5	26.0	28	74	2900	11	4.5
80-160(I)B	86.6	24.1	24	72	2900	11	4.5
80-200(I)	100	27.8	50	74	2900	22	4.0
80-200(I)A	93.5	26.0	44	73	2900	18.5	4.0
80-200(I)B	87	24.2	38	71	2900	15	4.0
80-250(I)	100	27.8	80	69	2900	37	4.0
80-250(I)A	93.5	26.0	70	68	2900	30	4.0
80-250(I)B	87	24.2	60	66	2900	30	4.0
80-315(I)	100	27.8	125	66	2900	75	4.0
80-315(I)A	95	26.4	113	66	2900	55	4.0
80-315(I)B	90	25	101	65	2900	45	4.0
80-315(I)C	82	22.8	85	63	2900	37	4.0

<, /TR>

泵型号	流量		扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
泵型号	(m 3 /h)	(l/s)	扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
100-100	100	27.8	12.5	76	2900	5.5	4.5
100-100A	89	47	10	74	2900	4.0	4.5
100-125	100	27.8	20	76	2900	11	4.5
100-125A	89	24.7	16	74	2900	7.5	4.5
100-160	100	27.8	32	76	2900	15	4.5
100-160A	93.5	26.0	28	74	2900	11	4.5
100-160B	86.5	24.1	24	72	2900	11	4.5
100-200	100	27.8	50	74	2900	22	4.0
100-200A	93.5	26.0	44	73	2900	18.5	4.0
100-200B	87	24.2	38	71	2900	15	4.0
100-250	100	27.8	80	69	2900	37	4.0
100-250A	93.5	26.0	70	68	2900	30	4.0
100-250B	87	24.2	60	66	2900	30	4.0
100-315	100	27.8	125	66	2900	75	4.0
100-315A	95	26.4	113	66	2900	55	4.0
100-315B	90	25.0	101	65	2900	45	4.0
100-315C	82	22.8	85	63	2900	37	4.0
125-100	160	44.4	12.5	82	2900	11	4.0
125-100A	143	39.7	10	77	2900	7.5	4.0
125-125	160	44.4	20	80	2900	15	4.0
125-125A	143	39.7	16	77	2900	11	4.0
125-160	160	44.4	32	78	2900	22	4.0
125-160A	150	41.7	28	76	2900	18.5	4.0
125-160B	138	38.3	24	73	2900	15	4.0
125-200	160	44.4	50	77	2900	37	5.5
125-200A	150	41.7	44	76	2900	30	5.5
125-200B	138	38.3	37.5	75	2900	30	5.5
125-250	160	44.4	80	75	2900	55	5.0
125-250A	150	41.7	70	74	2900	45	5.0
125-250B	138	38.3	60	73	2900	37	5.0
125-315	160	44.7	125	70	2900	90	5.0
125-315A	150	41.7	110	70	2900	75	5.0
125-315B	143	39.7	100	69	2900	75	5.0
125-315C	134	37.2	88	67	2900	55	5.0
150-200	200	55.6	12.5	78	1450	15	3.0
150-200A	176	49.7	10	76	1450	11	3.0
150-250	200	55.6	20	79	1450	18.5	3.0
150-250A	184.4	51.2	17	78	1450	15	3.0
150-250B	167	46.4	14	76	1450	11	3.0
150-315	200	55.6	32	78	1450	30	3.5
150-315A	187	51.9	28	77	1450	22	3.5
150-315B	173	48.1	24	76	1450	18.5	3.5
150-400	200	55.6	50	75	1450	45	3.5
150-400A	187	51.9	44	74	1450	37	3.5
150-400B	174	48.3	38	73	1450	30	3.5
150-400V	160	44.4	32	71	1450	22	3.5
150-250(I)	200	55.6	80	76	2900	75	4.5
150-250(I)A	187	51.9	70	75	2900	55	4.5
150-250(I)B	173	48.1	60	74	2900	45	4.5
150-315(I)	200	55.6	125	73	2900	111	4.5
150-315(I)A	187	51.9	110	72	2900	90	4.5
150-315(I)B	173	48.1	95	70	2900	75	4.

, ,,

泵型号	流量		扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
泵型号	(m 3 /h)	(l/s)	扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汽蚀佘量 (m)
200-200	200	55.6	12.5	78	1450	15	3.0
200-200A	179	49.7	10	76	1450	11	3.0
200-250	200	55.6	20	79	1450	18.5	3.0
200-250A	184.4	51.2	17	78	1450	15	3.0
200-250B	167	46.4	14	76	1450	11	3.0
200-315	200	55.6	32	78	1450	30	3.5
200-315A	189	51.9	28	77	1450	22	3.5
200-315B	173	48.1	24	76	1450	18.5	3.5
200-400	200	55.6	50	75	1450	45	3.5
200-400A	187	51.9	44	74	1450	37	3.5
200-400B	174	48.6	38	73	1450	30	3.5
200-400C	160	44.4	32	71	1450	22	3.5
200-200(I)	400	111.1	12.5	80	1450	22	4.0
200-200(I)A	358	99.4	10	73	1450	18.5	4.0
200-250(I)	400	111.1	20	80	1450	30	4.0
200-250(I)A	358	99.4	16	78	1450	22	4.0
200-250(I)B	322	89.4	13	75	1450	18.5	4.0
200-315(I)	400	111.4	32	80	1450	55	4.0
200-315(I)A	374	103.9	28	79	1450	45	4.0
200-315(I)B	346	96.1	, 24	78	1450	37	4.0
200-400(I)	400	111.4	50	81	1450	75	4.0
200-400(I)A	374	103.9	44	80	1450	75	4.0
200-400(I)B	346	96.1	38	78	1450	55	5.0
200-400(I)C	320	88.9	32	76	1450	45	5.0
300-235	720	200	18	81	970	55	5.0
300-235A	607	182.5	15	79	970	45	5.0
300-235B	600	167.0	12.5	77	970	37	5.0
300-300	720	200	28	81	970	75	5.0
300-300A	666	185	24	80	970	75	5.0
300-300B	623	173.1 ,	21	79	970	55	5.0
, 300-380	720	200	44	84	970	132	5.0
300-380A	666	185	38	80	970	110	5.0
300-380B	614	170.6	32	78	970	90	5.0
300-235(I)	1080	300	40	82	1450	160	5.5
300-235(I)A	965	268.1	32	80	1450	132	5.5
300-250	720	200	20	83	1450	55	6.0
300-250A	600	166	17	81	1450	45	6.0
300-300	720	200	28	82	1480	75	5.0
300-300A	600	166	24	80	1480	75	5.0
300-300B	540	150	21	78	1480	55	5.0
300-315	720	200	32	84	1480	90	4.5
300-315A	650	180	28	80	1480	75	4.5
300-315B	580	161	24	78	1480	55	4.5
300-380	720	200	44	84	970	132.0	5.0
300-380A	666	185	38	80	970	110.0	5.0
300-380B	614	170.6	32	78	970	90.0	5.0
300-390	720	200	18	81	980	55	5.0
300-390A	600	167	15	79	980	45	5.0
300-390B	540	150	12.5	77	980	37	5.0
300-400	600	166	50	78	1480	110	5.0
300-480	720	200	28	81	980	75	5.0
300-480A	600	166	24	80	980	75	5.0
300-480B	540	150	21	79	980	55	5.0
350-235	800	222	12.5	83	1480	37	4.5
350-300	800	222	20	82	1480	55	4.5
350-315	800	222	32	84	1480	90	4.5
350-400	800	222	50	83	1480	160	4.5
400-300	1080	300	20	78	1480	90	6.0
400-315	1080	300	32	76	1480	132	6.0
500-300	1200	333	20	80	1480	110	6.0
500-315	1200	222	32	78	1480	160	6.0
