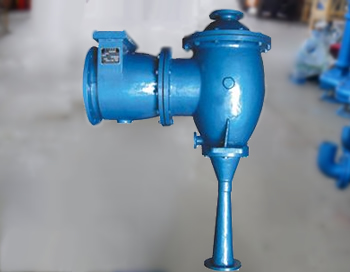

W type water jet
W-type hydraulic ejector has three effective functions such as vacuuming, condensation and drainage. It is used in vacuum and evaporation systems for vacuum pumping, vacuum evaporation, vacuum filtration, vacuum crystallization, drying, deodorization and other processes. It is used for sugar, pharmaceutical, Chemicals, food, salt, monosodium glutamate, milk, fermentation, and some equipment widely required by light industry and national defense departments
Performance characteristics:
A water jet vacuum pump, also called a water jet vacuum pump, is a mechanical device with three effective functions such as vacuuming, condensing, and draining. It uses a certain pressure of water flow through nozzles that are symmetrically and evenly distributed to a certain side slope. The polymerization is in a focal point. Because the jet water flow velocity is high, a negative pressure is formed around the chamber to generate a vacuum. In addition, because the secondary steam directly contacts the jet water flow for heat exchange, most of the steam is condensed into water, a small amount The non-condensed steam and non-condensed gas are also mixed and squeezed due to friction with the high-speed jet of water, and are eliminated through the diffuser tube, so that a higher vacuum is formed in the chamber. The hydraulic ejector is widely used, mainly used in vacuum and evaporation systems for vacuum pumping, vacuum evaporation, vacuum filtration, vacuum crystallization, drying, deodorization and other processes. It is used for sugar, pharmaceutical, chemical, food, salt, monosodium glutamate, milk , Fermentation and some equipment widely required by light industry.
Performance structure table:
|
型号规格 |
蒸发量 |
真空度 |
扬程 |
流量 |
配套多级水泵型号 |
|
L/H |
Mpa |
M |
m3/h |
||
|
W-100L |
100 |
0.097(680-720) |
45 |
18 |
50D8×5 |
|
W-200L |
200 |
0.097(680-720) |
45 |
18 |
50D8×5 |
|
W-300L |
300 |
0.097(680-720) |
45 |
18 |
50D8×5 |
|
W-400L |
400 |
0.097(680-720) |
45 |
18 |
50D8×6 |
|
W-500L |
500 |
0.097(680-720) |
45 |
32 |
80D12×4 |
|
W-600L |
600 |
0.097(680-720) |
45 |
32 |
80D12×4 |
|
W-700L |
700 |
0.097(680-720) |
45 |
32 |
80D12×4 |
|
W-800L |
800 |
0.097(680-720) |
50 |
32 |
80D12×5 |
|
W-900L |
900 |
0.097(680-720) |
50 |
32 |
80D12×5 |
|
W-1000L |
1000 |
0.097(680-720) |
50 |
32 |
80D12×5 |
|
W-1200L |
1200 |
0.097(680-650) |
50 |
32 |
80D12×6 |
|
W-1500L |
1500 |
0.097(680-650) |
50 |
108 |
125D25×2(4BA12) |
|
W-1800L |
1800 |
0.097(680-650) |
50 |
108 |
125D25×2 |
|
W-2000L |
2000 |
0.097(680-650) |
50 |
108 |
125D25×3 |
|
W-3000L |
3000 |
0.097(680-650) |
50 |
108 |
125D25×4(150D30×2) |
|
备注:以上各种中型号,安装高度>4.5M,器体水压试验0.6MPa无泄漏. |
|||||
