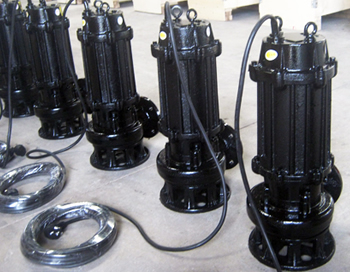

WQ/QW series high-speed submersible sewage pump
WQ/QW series high-speed submersible sewage pumps are used in municipal engineering, factories, hospitals, farmland irrigation, aquaculture, fountains, construction sites, hotels, restaurants and other industries
Purpose:
WQ/QW series high-speed submersible sewage pumps are mainly used in municipal engineering, factories, hospitals, farmland irrigation, aquaculture, fountains, construction sites, hotels, restaurants and other industries
Discharge wastewater containing solid particles and urban domestic sewage.

Performance range:
Speed: 2840r/min
Caliber: 40~100mm
Flow rate: 10~100m3/h
Head: 5~28m
Power: 1.1~7.5kw
Cooling method: external medium cooling.
Low water level for pumping capacity: Allow half of the submersible motors to emerge from the water.

Features:
◆Reasonable design, anti-clogging, strong winding ability and reliable use.
◆Easy installation and use: movable installation and automatic coupling installation, easy installation and maintenance.
◆High reliability: The submersible pump is equipped with a control cabinet and has the functions of water leakage detection, overheating, and overload protection.
◆Convenient control: The control cabinet is fully automatic control, protection and signal output, which is conducive to centralized control.
◆The configuration of the float switch can automatically control the stop and start of the pump according to the required water level change, without special supervision.

Performance parameter table:



型号

口径
mm

流量
m3/h

扬程
m

功率
KW

转速
r/min

效率
%

25-8-22-1.1

25

8

22

1.1

2825

38.5

32-12-15-1.1

32

12

15

1.1

2825

40

40-15-15-1.5

40

15

15

1.5

2840

45.1

40-15-30-2.2

40

15

30

2.2

2840

48

50-20-7-0.75

50

20

7

0.75

1390

54

50-10-10-0.75

50

10

10

0.75

1390

56

50-20-15-1.5

50

20

15

1.5

2840

55

50-15-25-2.2

50

15

25

2.2

2840

56

50-18-30-3

50

18

30

3

2880

58

50-25-32-5.5

50

25

32

5.5

2900

53

50-20-40-7.5

50

20

40

7.5

2900

55

65-25-15-2.2

65

25

15

2.2

2840

52

65-37-13-3

65

37

13

3

2880

55

65-25-30-4

65

25

30

4

2890

58

65-30-40-7.5

65

30

40

7.5

2900

56

65-35-50-11

65

35

50

11

2930

60

65-35-60-15

65

35

60

15

2930

63

80-40-7-2.2

80

40

7

2.2

1420

52

80-43-13-3

80

43

13

3

2880

50

80-40-15-4

80

40

15

4

2890

57

80-65-25-7.5

80

65

25

7.5

2900

56

100-80-10-4

100

80

10

4

1440

62

100-110-10-5.5

100

110

10

5.5

1440

66

100-100-15-7.5

100

100

15

7.5

1440

67

100-85-20-7.5

100

85

20

7.5

1440

68

100-100-25-11

100

100

25

11

1460

65

100-100-30-15

100

100

30

15

1460

66

100-100-35-18.5

100

100

35

18.5

1470

65

125-130-15-11

125

130

15

11

1460

62

125-130-20-15

125

130

20

15

1460

63

150-145-9-7.5

150

145

9

7.5

1440

63

150-180-15-15

150

180

15

15

1460

65

150-180-20-18.5

150

180

20

18.5

1470

75

15-180-25-22

150

180

25

22

1470

76

150-130-30-22

150

130

30

22

1470

75

150-180-30-30

150

180

30

30

1470

73

150-200-30-37

150

200

30

37

1480

70

200-300-7-11

200

300

7

11

970

73

200-250-11-15

200

250

11

15, , ,

970

74

200-400-10-22

200

400

10

22

1470

76

200-400-13-30

200

400

13

30

1470

73

200-250-15-18.5

200

250

15

18.5

1470

72

200-300-15-22

200

300

15

22

1470

73

200-250-22-30

200

250

22

30

1470

71

200-350-25-37

200

350

25

37

1980

75

200-400-30-45

200

400

30

45

1480

70

250-600-9-30

250

600

9

30

980

74

250-600-12-37

250

600

12

37

1480

78

250-600-15-45

250

600

15

45

1480

75

250-600-20-55

250

600

20

55

1480

73

250-600-25-75

250

600

25

75

1480

73

250-800-12-45

250

800

12

45

980

76

300-500-15-45

300

500

15

45

980

70

300-800-15-55

300

800

15

55

980

73

300-600-20-55

300

600

20

55

980

75

300-800-20-75

300

800

20

75

980

78

300-950-20-90

300

950

20

90

980

80

300-1000-25-110

300

1000

25

110

980

82

350-1100-10-55

350

1100

10

55

980

84.5

350-1500-15-90

350

1500

15

90

980

82.5

350-1200-18-90

350

1200

18

90

980

83.1

350-1100-28-132

350

1100

28

132

740

83.2

350-1000-36-160

350

1000

36

160

740

78.5

350-1500-10-75

400

1500

10

75

980

82.1

400-2000-15-132

400

2000

15

132

740

85.5

400-1700-22-160

400

1700

22

160

740

82.1

400-1500-26-160

400

1500

26

160

740

83.5

400-1700-30-200

400

1700

30

200

740

83.5

400-1800-32-250

400

1800

32

250

740

82.1
