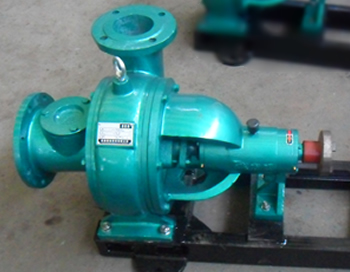

LXLZ type pulp pump

LXLZ type pulp pump is suitable for circulating conveying, lifting and pressurizing in paper industry, sugar industry and urban sewage industry. High efficiency, energy saving, good cavitation performance, long life, high concentration, no clogging

Overview:

The LXLZ two-phase flow pulp pump adopts the principle of "relative suction and relative obstruction" in the two-phase flow theory to carry out the hydraulic design of the pump, so that the hydraulic performance of the pump's flow-through components conforms to the law of solid-liquid two-phase flow, thereby reducing The scouring and abrasion of the flowing parts by the slurry greatly improves the working efficiency and service life of the pump. After years of long-term actual operation assessment, this series of pumps has the following remarkable characteristics:

1. High efficiency and energy saving: The operating efficiency is 3-10% higher than ordinary pulp pumps on average, and energy saving and consumption reduction can reach 15-30%.

2. Good cavitation performance and long service life: the actual service life can be increased by 2-3 times compared with ordinary pulp pumps

3. High concentration, no clogging: Concentration of conveyed pulp reaches 6%

4. Reasonable structure and convenient maintenance: The pump head adopts a front and rear door-opening structure, and there is no need to disassemble the pipeline during maintenance. You only need to move the motor backward to disassemble and repair the pump.

Use range:

1. Papermaking industry: used for circulating, lifting and pressurizing the medium in the process of conveying pulp with a concentration of less than 6% and alkali recovery;

2. Sugar industry: used for conveying syrup with a concentration below 4% and a viscosity below 150mm2/s;

3. Urban sewage industry: used for circulating transportation, lifting and pressurizing of sewage treatment process media.

Performance parameter table:

类别	序号	规格型号	使用范围		吸上高度（m）	转速 n （r/min）	效率（%）	配用电动机型号及功率	介质体积浓度（%）	叶轮名义直径（mm）
类别	序号	规格型号	流量（m³/h）	扬程（m）	吸上高度（m）	转速 n （r/min）	效率（%）	配用电动机型号及功率	介质体积浓度（%）	叶轮名义直径（mm）
A	1	80LXLZ-50-6	30-60	7-5	2.5	1420	68	Y100L₁-2.2	4-6	156
B	1	80LXLZ-60-12	35-70	14-12	2.5	1440	62	Y112M-4	4-6	210
B	2	80LXLZ-65-15	40-80	16-14	2.5	1440	62	Y132S-5.5	4-6	225
C	1	80LXLZ-50-20	30-60	23-21	6	1440	60	Y132S-5.5	4-6	258
C	2	80LXLZ-55-25	35-70	26-24	6	1440	60	Y132M-7.5	4-6	285
D	1	80LXLZ-60-35	35-70	37-33	6	1460	60	Y160M-11	4-6	323
	2	80LXLZ-70-40	40-80	41-37	6	1460	60	Y160L-15	4-6	340
	3	80LXLZ-80-45	55-100	44-40	6	1460	60	Y180M-18.5	4-6	353
E	1	100LXLZ-90-18	55-110	19-17	6	1440	70	Y132M-7.5	4-6	242
E	2	100LXLZ-110-20	65-130	23-21	6	1460	72	Y160M-11	4-6	258
F	1	100LXLZ-80-20	50-100	21-19	6	1440	68	Y132M-7.5	4-6	258
F	2	100LXLZ-80-25	50-100	29-25	6	1460	68	Y160M-11	4-6	285
G	1	100LXLZ-70-30	40-80	32-28	6	1460	60	Y160M-11	4-6	293
	2	100LXLZ-80-35	50-100	37-33	6	1460	60	Y160L-15	4-6	320
	3	100LXLZ-90-40	55-110	43-37	6	1470	60	Y180M-18.5	4-6	340
H	1	100LXLZ-150-16	90-180	19-17	6	970	68	Y180L-15	4-6	258
	2	100LXLZ-160-30	95-190	32-28	6	1470	68	Y180L-22	4-6	310
	3	100LXLZ-180-35	110-220	37-32	6	1470	68	Y200L-30	4-6	330
	4	100LXLZ-200-40	120-240	43-37	6	1480	68	Y225S-37	4-6	350
	5	100LXLZ-130-11	80-160	12-9	6	970	65	Y160M-7.5	4-6	300
K	1	100LXLZ-100-22	60-120	23-21	6	970	60	Y160M-11	4-6	385
	2	100LXLZ-130-45	80-160	49-43	6	1470	60	Y200L-30	4-6	365
	3	100LXLZ-140-50	85-170	55-48	6	1480	60	Y225S-37	4-6	390
	4	100LXLZ-200-55	120-240	58-51	6	1480	60	Y250M-55	4-6	399
M	1	150LXLZ-160-15	95-190	15-12	6	970	75	Y160L-11	4-6	320
	2	150LXLZ-200-25	120-240	25.5-22.5	6	1470	75	Y180L-22	4-6	290
	3	150LXLZ-220-30	130-260	32-28	6	1470	75	Y200L-30	4-6	310
	4	150LXLZ-200-20	120-240	21.5-18.5	6	1470	75	Y180M-18.5	4-6	275
	5	150LXLZ-300-25	180-360	26.5-23	6	1470	75	Y200L-30	4-6	310
N	1	150LXLZ-200-14	120-240	13-11	5	970	70	Y160L-11	4-6	318
	2	150LXLZ-240-14	145-290	14-11	5	970	70	Y180L-15	4-6	323
	3	150LXLZ-210-16	125-250	15-13	5	970	70	Y180L-15	4-6	340
	4	150LXLZ-260-16	155-310	15-13	5	970	70	Y200L₁-18.5	4-6	340
	5	150LXLZ-300-30	180-360	29.5-26	5	1480	72	Y225S-37	4-6	318
	6	150LXLZ-370-30	220-440	29.5-26	5	1480	72	Y225M-45	4-6	323
	7	150LXLZ-320-35	190-380	36-32	5	1480	72	Y225M-45	4-6	340
	8	150LXLZ-400-35	240-480	34-29	5	1480	72	Y250M-55	4-6	340
P	1	125LXLZ-130-38	80-160	40-35.5	6	1470	68	Y180L-22	4-6	340
	2	125LXLZ-120-32	70-140	34-29	6	1470	68	Y180M-18.5	4-6	310
	3	125LXLZ-90-17	55-110	18-15.5	6	970	68	Y160M-7.5	4-6	340
R	1	150LXLZ-300-15	180-360	16-14	5	970	75	Y200L₁-18.5	4-6	350
	2	150LXLZ-280-12	170-340	13-11	5	970	75	Y180L-15	4-6	315
	3	150LXLZ-430-32	260-520	34-29	5	1480	75	Y250M-55	4-6	340
	4	150LXLZ-400-28	240-480	30-25	5	1480	75	Y225M-45	4-6	315
	5	150LXLZ-340-25	210-430	27-20	5	1480	75	Y225S-37	4-6	300
	6	150LXLZ-360-36	215-430	39-32	5	1480	75	Y250M-55	4-6	350
Q	1	150LXLZ-370-14	220-440	15-13	5	970	77	Y200L₂-22	4-6	350
	2	150LXLZ-350-12	210-420	13-11	5	970	77	Y200L₁-18.5	4-6	335
	3	150LXLZ-570-34	340-680	35-30	5	, 1480	77	Y280S-75	4-6	350
	4	150LXLZ-500-27	310-620	28-24	5	1480	77	Y250M-55	4-6	316
S	1	250LXLZ-800-25	480-960	26.5-23	5	1480	76	Y280M-90	4-6	330
S	2	250LXLZ-500-10	300-600	11-9	5	970	76	Y200L₂-22	4-6	320
T	1	200LXLZ-500-43	300-600	44-40	5	1480	75	Y280M-90	4-6	384
T	2	200LXLZ-460-37	280-550	39-34	5	1480	72	Y280S-75	4-6	356
U	1	200LXLZ-600-14	360-720	15-12	5	1480	76	Y225S-37	4-6	260
U	2	200LXLZ-400-6	240-480	7-5	5	970	76	Y160L-11	4-6	260
V	1	200LXLZ-250-5	150-300	6-4	5	970	76	Y132M₂-5.5	4-6	233
W	1	150LXLZ-130-5	80-160	6-4	5	970	76	Y132S-3	4-6	228
YA	1	250LXLZ-1000-32	700-1150	34-28	1.5	1480	75	Y315M-132	4-6	353
	2	250LXLZ-935-28	655-1080	30-24	1.5	1480	75	Y315S-110	4-6	330
	3	250LXLZ-660-14	460-760	15-10	1.5	980	75	Y280S-45	4-6	353
	4	250LXLZ-620-12	435-715	13-8	1.5	980	75	Y250M-37	4-6	330
YB	1	250LXLZ-1000-50	700-1150	52-48	1.5	1480	78	Y355M₁-220	4-6	426
	2	250LXLZ-950-45	665-1100	47-42	1.5	1480	78	Y315L₂-185	4-6	405
	3	250LXLZ-900-40	630-1035	42-38	1.5	1480	78	Y315L₁-160	4-6	384
	4	250LXLZ-850-36	600-980	38-33	1.5	1480	78	Y315M-132	4-6	362
	5	250LXLZ-660-22	460-760	24-20	1.5	980	78	Y315S-75	4-6	426
	6	250LXLZ-630-20	440-730	21-17	1.5	980	78	Y280M-55	4-6	405
	7 <, /TD>	250LXLZ-600-18	420-690	<, FONT size=4, , , >19-15	980	78	Y280S-45	4-6	384
YC	1	300LXLZ-1300-32	910-1500	34-30	1.5	1480	78	Y315L₂-185	4-6	370
	2	300LXLZ-1200-29	840-1380	31-27	1.5	1480	78	Y315L₁-160	4-6	350
	3	300LXLZ-1150-26	800-1320	28-24	1.5	1480	78	Y315M-132	4-6	335
	4	300LXLZ-860-14	600-990	15-12	1.5	980	78	Y280M-55	4-6	370
	5	300LXLZ-820-13	575-940	14-11	1.5	980	78	Y280S-45	4-6	350
	6	300LXLZ-780-11	545-900	12-9	1.5	980	78	Y250M-37	4-6	335
YD	1	300LXLZ-1300-50	910-1500	52-48	1.5	1480	76	Y355L₁-280	4-6	424
	2	300LXLZ-1200-42	840-1380	44-40	1.5	1480	76	Y355M₁-220	4-6	400
	3	300LXLZ-1100-36	770-1270	38-33	1.5	1480	76	Y315L₁-185	4-6	370
	4	300LXLZ-860-22	600-990	24-20	1.5	980	76	Y315M-90	4-6	424
	5	300LXLZ-800-18	560-920	19-16	1.5	980	76	Y315S-74	4-6	400
	6	300LXLZ-730-16	510-840	17-14	1.5	980	76	Y280M-55	4-6	370
YE	1	350LXLZ-1600-32	1120-1840	34-30	3.5	980	79	Y355L₁-220	4-6	528
	2	350LXLZ-1500-28	1050-1725	30-26	3.5	980	79	Y355M₂-185	4-6	495
	3	350LXLZ-1400-25	980-1610	27-23	3.5	980	79	Y355M₁-160	4-6	467
	4	350LXLZ-1200-18	840-1380	20-16	3.5	740	79	Y315L₂-110	4-6	528
YF	1	400LXLZ-2000-32	1400-2300	34-30	2.5	980	80	JS₂-400M₃-280	4-6	538
	2	400LXLZ-1840-27	1290-2110	29-25	2.5	980	80	Y355L₁-220	4-6	495
	3	400LXLZ-1740-24	1220-2000	26-22	2.5	980	80	Y355M₂-185	4-6	466
	4	400LXLZ-1510-18	1060-1740	20-16	2.5	740	80	Y355M₂-132	4-6	538
YG	1	200LXLZ-500-70	300-600	73-66	5	1480	72	Y315L₁-160	4-6	487
	2	200LXLZ-460-60	276-552	62-56	5	1480	72	Y315M-132	4-6	450
	3	200LXLZ-425-50	255-510	53-46	5	1480	70	Y315S-110	4-6	412
